Boom Specifications
| Boom Design | Z-Fold |

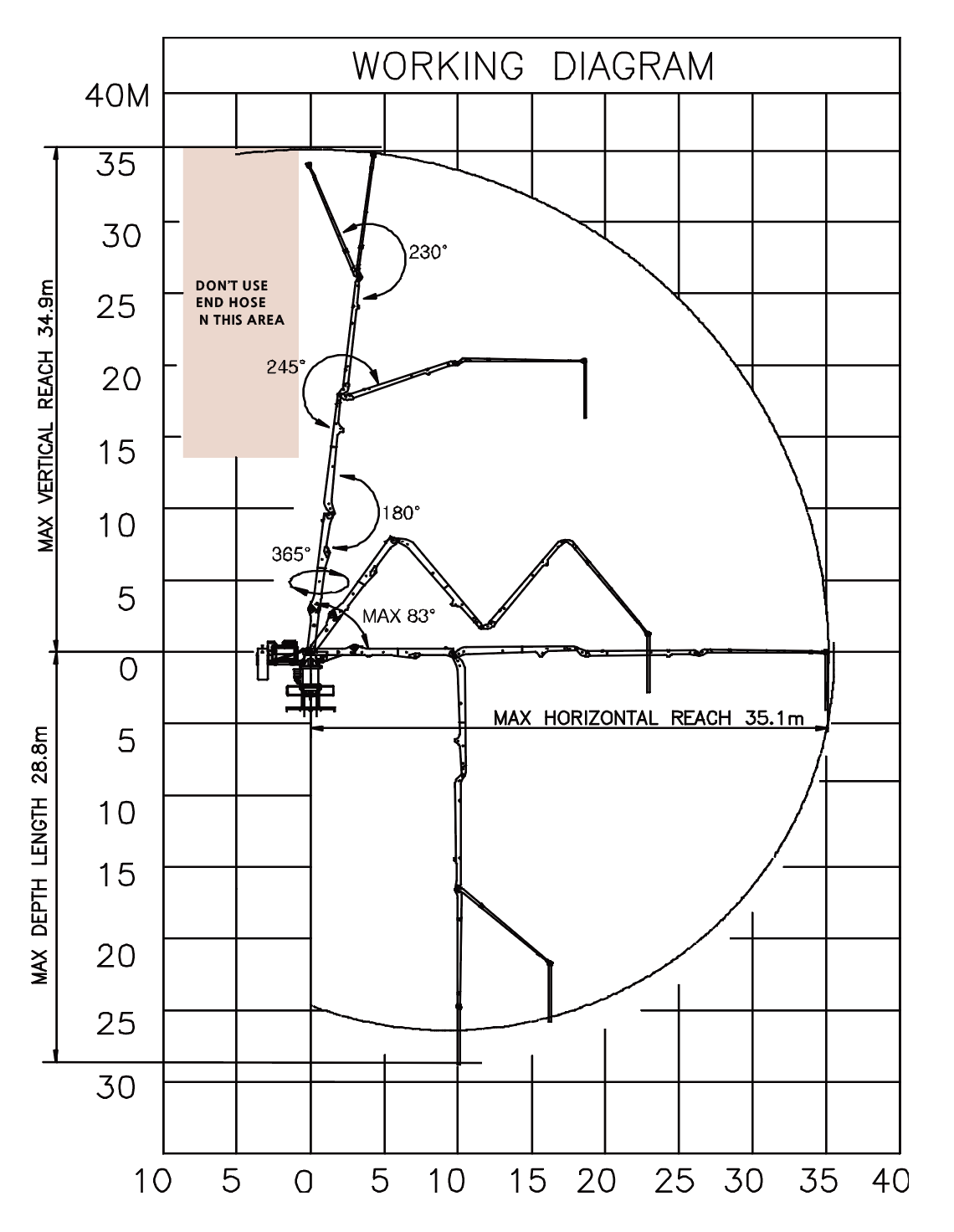

| Horizontal Reach |
35.1 m (115'2") |
| Vertical Reach |
34.9 m (114'6") |
| Reach Depth |
28.8 m (94'6") |
| Boom Length | |
| 1st Section |
9.8m (32'1") |
| 2nd Section |
8.3m (27'3") |
| 3rd Section |
8.3m (27'3") |
| 4th Section |
8.7m (28'7") |
| End Hose Length |
3.05m (10') |
| Boom Articulation | |
| 1st Section | -2°~83° |
| 2nd Section | 180° |
| 3rd Section | 245° |
| 4th Section |
230˚ |
| Rotation | 365° |
| Delivery Line | DN 125mm(5") |
| Electric System | AC460V / 60HZ |
| Control Systems | Wireless Remote |
| Electric Motor |
22kW |
