Standard Features

For the demands of the largest construction sites, the 61 Meter 5 Section answers the call! Capable of pumping concrete for stadiums, shopping malls, and other large projects, operators can trust that the 61 Meter will get the job done.

Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.

Split Panel Electrical System
The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.

Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.

View More Standard Features

S-Valve Manifold
Directs oil flow to either shift cylinder. Accumulator pressure is also utilized to control the main pump controllers. All electrical functions have manual over-rides.

Main Pump Cell Manifold
Directs oil to the pumping cylinders. All electrical functions have manual over-rides. The main pumping system is an open loop circuit, which reduces heat in the hydraulic system.

Boom Control Valve
The Hawe Controller Valve operates the boom functions and supplies oil for the outrigger circuit. This valve is fully proportional.

Main Pump
This is the main pump which delivers oil for the pumping cylinders. Accumulator pump, boom pump and accessory pumps are all Roxroth.

Hydraulic Oil Cooler
The fan is operated by a hydraulic motor for efficiency and maximum cooling and is controlled by a temperature sensor, with a manual over-ride.

Radio Remote Controls
Our standard package is equipped with Omnex Radio Controls, including two transmitters. The transmitter can also be utilized as a hard wire controller. The data cable plugs directly into the transmitter and into the receiver making the transmitter a proportional hard wire box. With the hard wire plugged into the transmitter, the battery is not necessary.

Hawe Load Holding Valve
Industry standard on boom cylinders to hold the boom in position.

Boom, Outriggers and Turret
Structures are all made of Oxelosund-Weldox structural steel.

Split Panel
Common relays are utilized along with ATO fuses. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.

EasyClean 600L Hopper
Carbide Tungsten wear parts and 60mm agitator shafts.

Hopper Vibrator
Standard on all Boom Pumps and Truck-Mounted Line Pumps, our Hopper Vibrator helps you tackle those harsh mixes.

Hopper Auto Lube
Moving parts in the hopper assembly are lubricated by a Lincoln Auto Lube system.

Hide Standard Features

Alliance Concrete Pumps

Dimensions & Diagrams

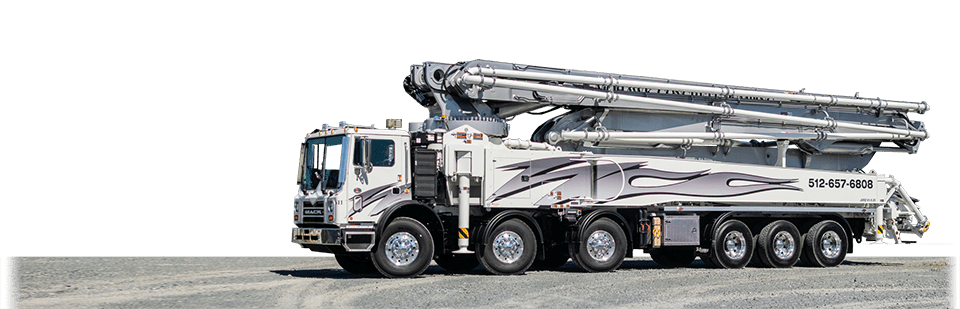

61 Meter 5-Section RZ Boom Pump - Concrete Pump

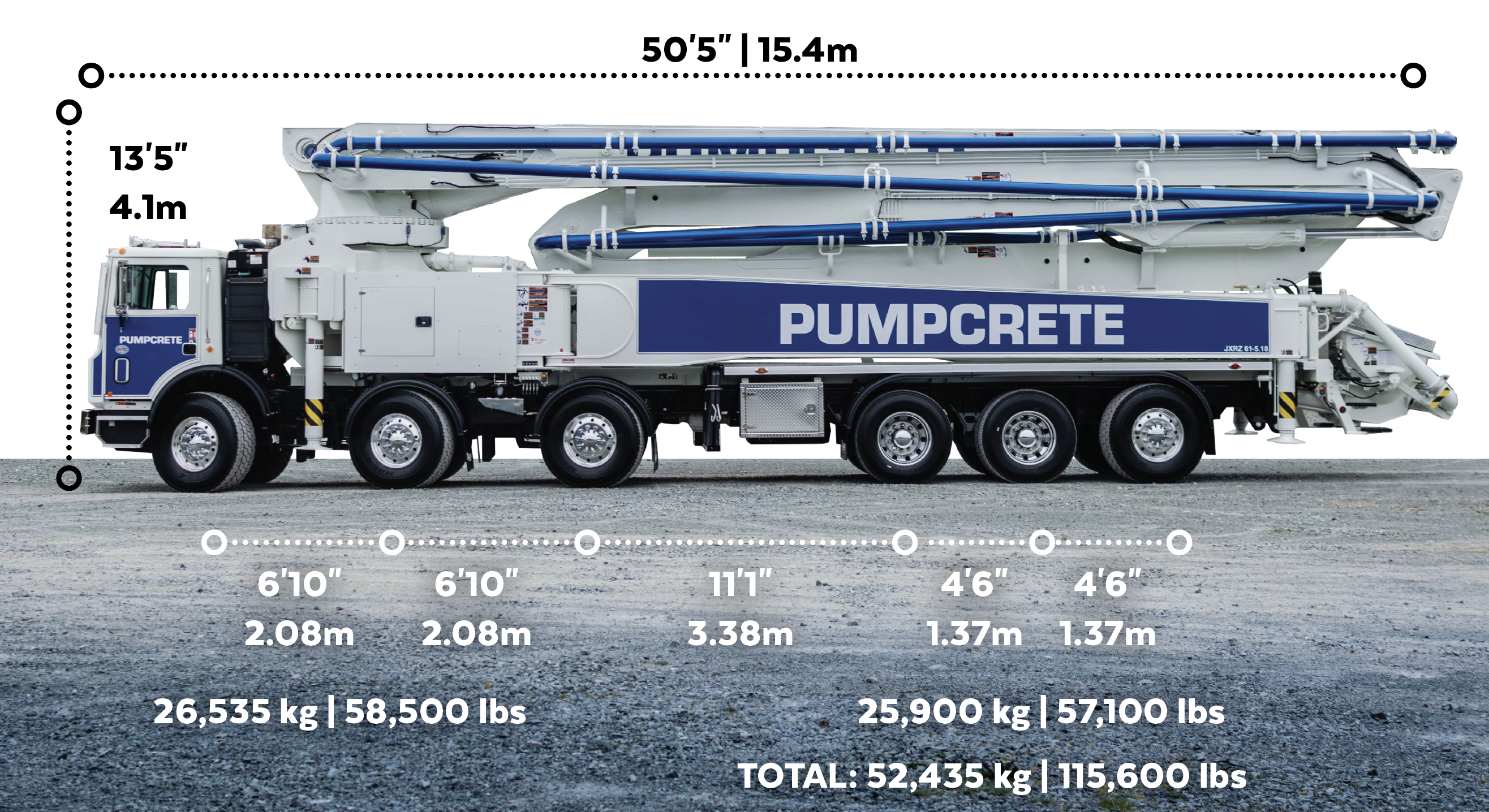

*Measurements and weights are subject to change

Alliance Concrete Pumps

Photo Gallery

Enter fullscreen

Boom Specifications

Number of booms 5 Sections
Folding Type R & Z Type

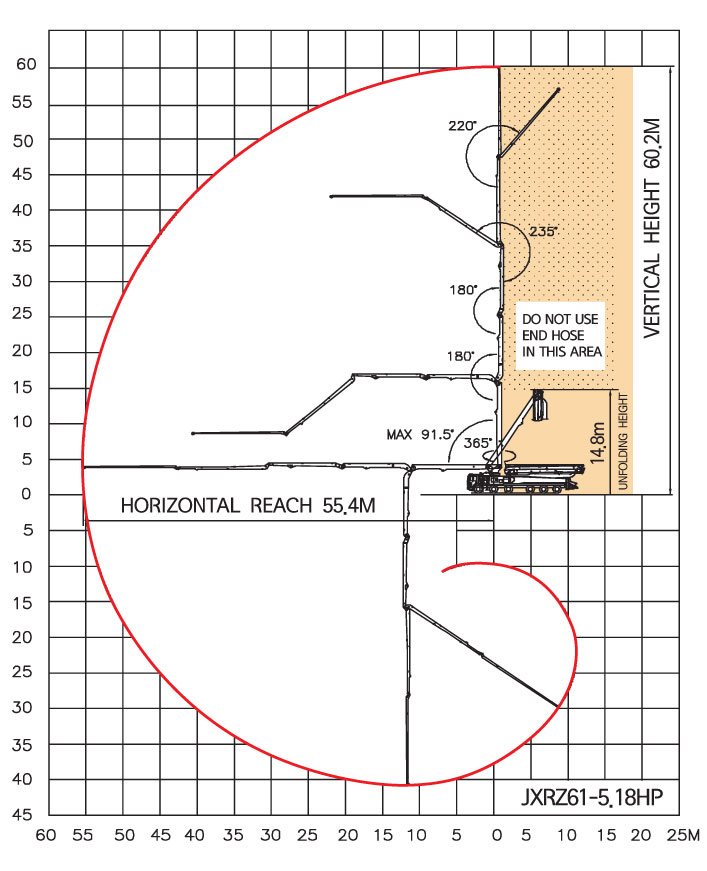

Vertical Height 60.2 m (197'6")
Horizontal Reach 55.4 m (181'9")
Unfolding Height 14.8 m (48'9")
1st Section Length 11.96 m (39'3")
2nd Section Length 9.32 m (30'6")
3rd Section Length 9.89 m (32'5")
4th Section Length 12.32 m (40'5")
5th Section Length 12.72 m (41'8")

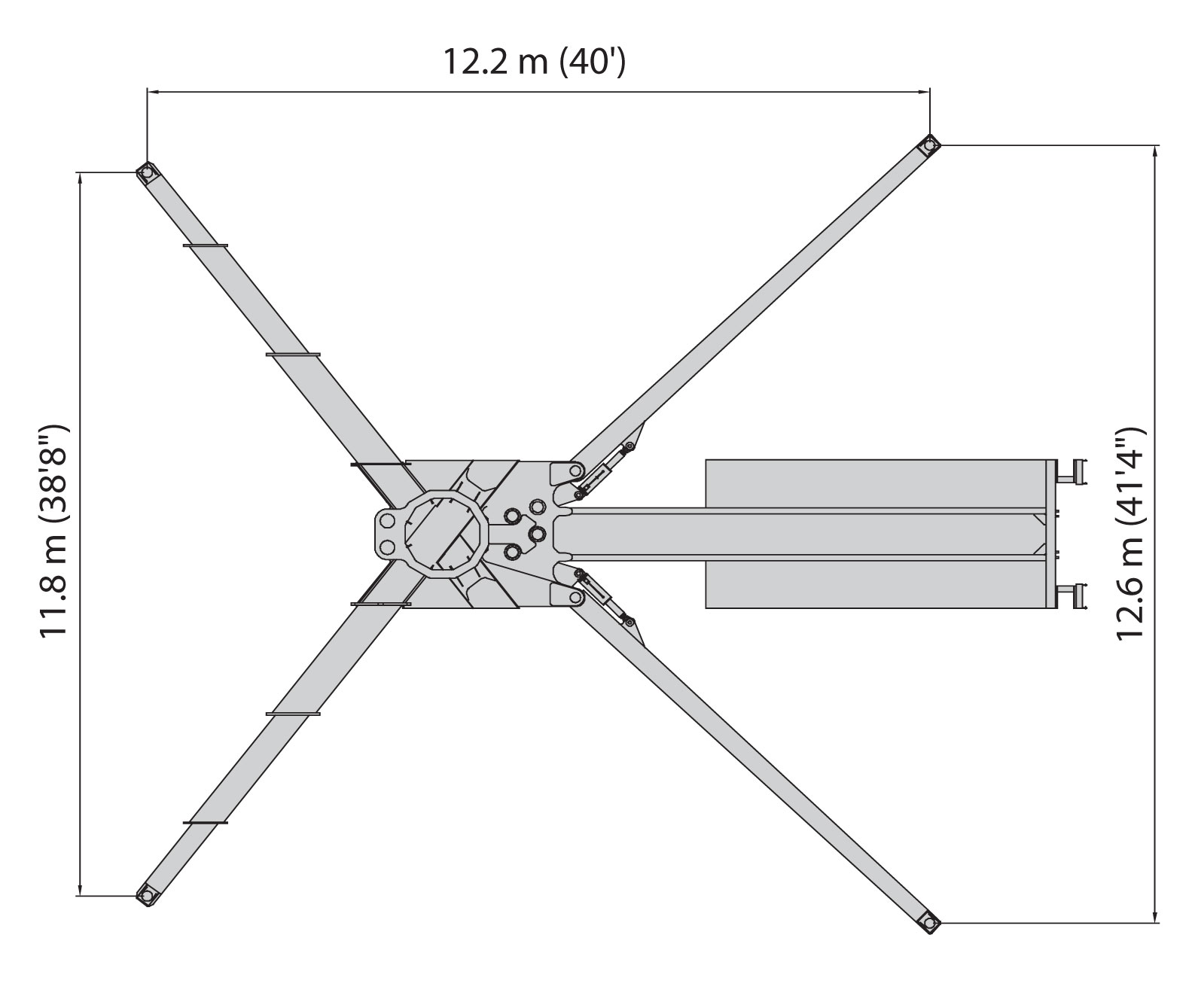

Outrigger X-Style
Front Spread 11.8 m (38'8")
Rear Spread 12.6 m (41'4")

Pump Specifications

Output: Rod Side 181 m³/h (235 yd³/h)
Output: Piston Side 122 m³/h (159 yd³/h)
Pressure: Piston Side 85 bar (1233 psi)
Pressure Piston Side 130 bar (1886 psi)
Concrete Cylinder Diameter 230 mm (9")
Concrete Cylinder Type Hard chromed
Stroke Length 2100 mm (83")
S-tube Size 9" x 7"
Main Oil Pump Twin Rexroth Hydromatic A20VLO190
Hydraulic System Pressure 350 bar (5076 psi)
Lube System (Hopper) Automatic
Switching System Hydraulic
Hopper Capacity Easy Clean 600L (158G)
Number of Strokes/Min 34
Output Control Range 20(26)~181m³/h (235yd³/h)

General Specifications

Pipe Size(ID) 125 mm (5")
Boom Control Valve Proportional (by HAWE)
Radio Remote  Dual Wireless Transmitter System
Vibrator Standard
Water Pump Hydraulic Power 20 bar (290 psi)
Water Tank 800 L (211 G)
Wear Parts Carbide
