Our 33 Meter Roll-Fold features one of the most desirable outrigger designs in the industry. The small footprint maintains maximum stability allowing operators to easily navigate cluttered jobsites.
Hydraulic System with Manual Overrides
Split Panel Electrical System
Optioned to Suit Your Needs
Directs oil flow to either shift cylinder. Accumulator pressure is also utilized to control the main pump controllers. All electrical functions have manual over-rides.
Main Pump Cell Manifold
Directs oil to the pumping cylinders. All electrical functions have manual over-rides. The main pumping system is an open loop circuit, which reduces heat in the hydraulic system.
Boom Control Valve
The Hawe Controller Valve operates the boom functions and supplies oil for the outrigger circuit. This valve is fully proportional.
This is the main pump which delivers oil for the pumping cylinders. Accumulator pump, boom pump and accessory pumps are all Roxroth.
Hydraulic Oil Cooler
The fan is operated by a hydraulic motor for efficiency and maximum cooling and is controlled by a temperature sensor, with a manual over-ride.
Radio Remote Controls
Our standard package is equipped with Omnex Radio Controls, including two transmitters. The transmitter can also be utilized as a hard wire controller. The data cable plugs directly into the transmitter and into the receiver making the transmitter a proportional hard wire box. With the hard wire plugged into the transmitter, the battery is not necessary.
Hawe Load Holding Valve
Industry standard on boom cylinders to hold the boom in position.
Boom, Outriggers and Turret
Structures are all made of Oxelosund-Weldox structural steel.
Common relays are utilized along with ATO fuses. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.
EasyClean 600L Hopper
Carbide Tungsten wear parts and 60mm agitator shafts.
Standard on all Boom Pumps and Truck-Mounted Line Pumps, our Hopper Vibrator helps you tackle those harsh mixes.
Hopper Auto Lube
Moving parts in the hopper assembly are lubricated by a Lincoln Auto Lube system.

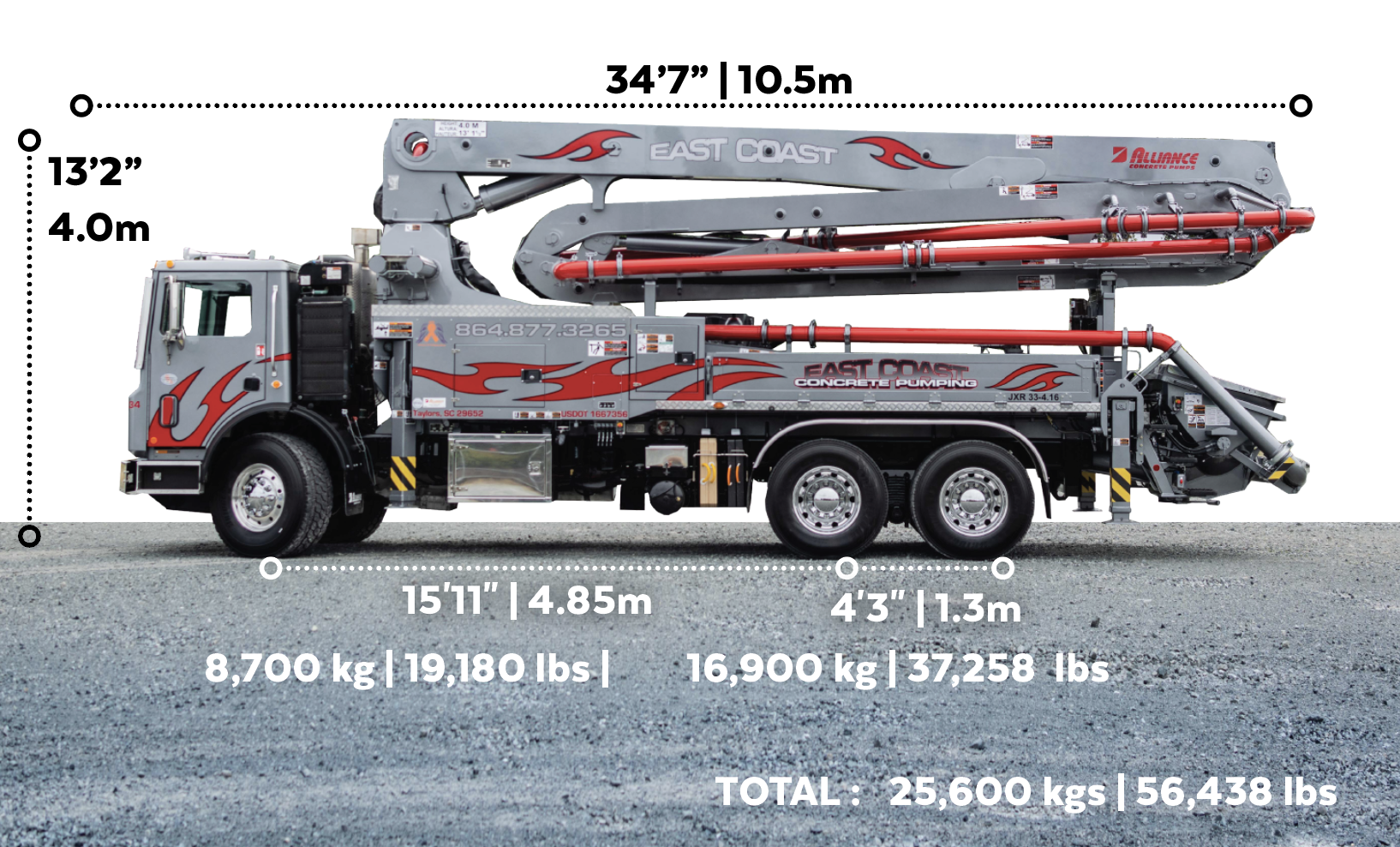

Dimensions & Diagrams
*Measurements and weights are subject to change

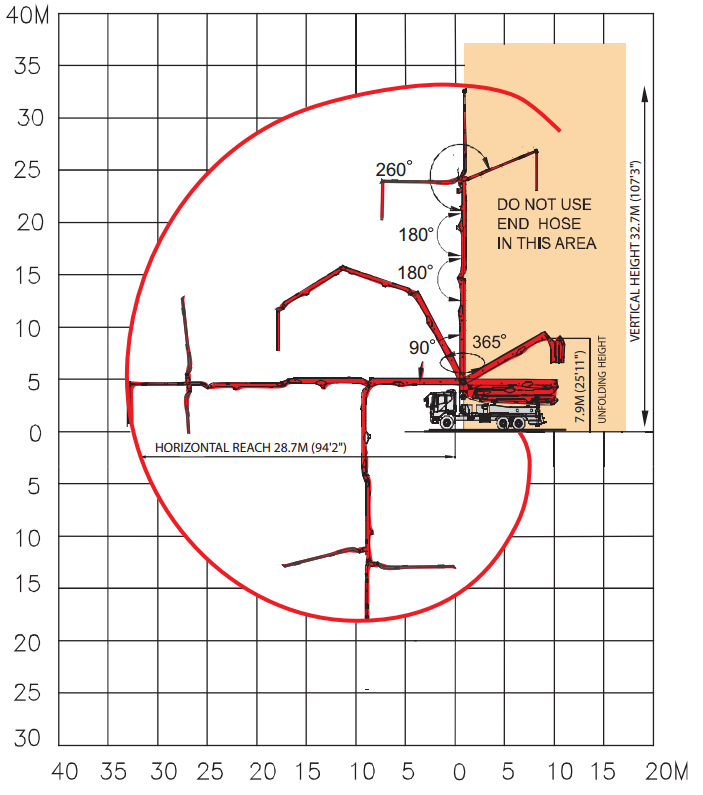

|Vertical Reach||32.7 m (107'3")|
|Horizontal Reach||28.7 m (94'2")|
|Reach from Front
|26.2 m (86')|
|Unfolding Height||7.9 m (25'11")|
|1st Section Length||8.0 m (26'3")|
|2nd Section Length||7.0 m (23')|
|3rd Section Length||7.0 m (23')|
|4th Section Length||6.7 m (22')|

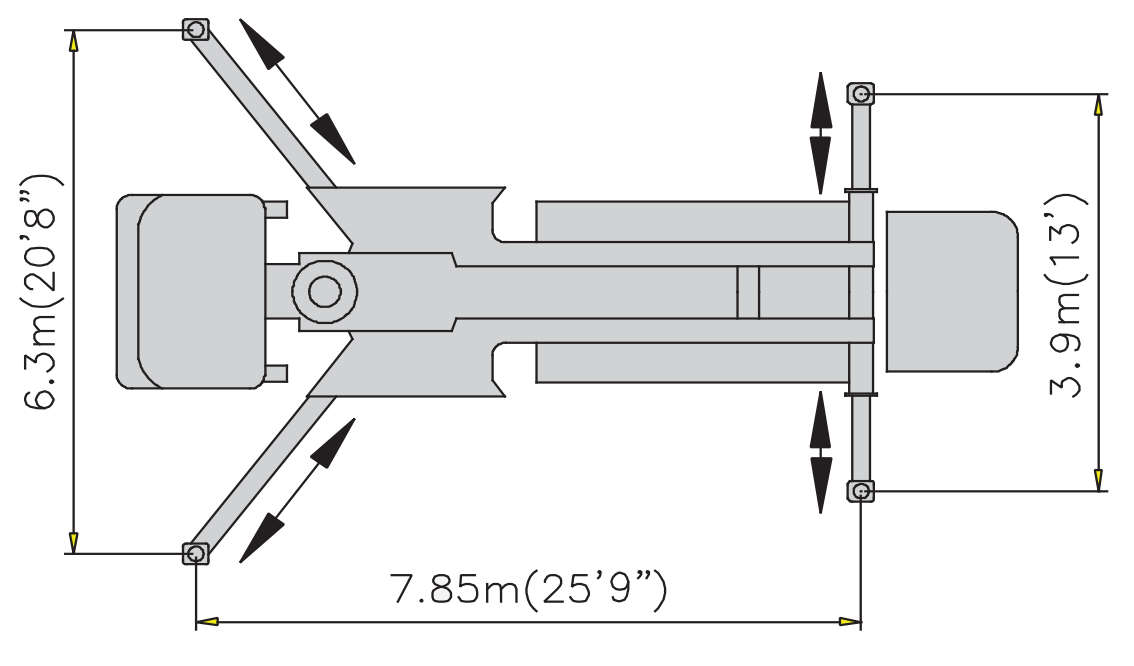

|Front Spread||6.3 m (20'8")|
|Rear Spread||3.9 m (13')|
|Output: Rod Side||164m³/h (215 yd³/h)|
|Output: Piston Side||102 m³/h (133 yd³/h)|
|Pressure: Rod Side||72 Bar (1044 psi)|
|Pressure: Piston Side||115* bar (1668 psi)|
|Concrete Cylinder Diameter||230 mm (9")|
|Concrete Cylinder Type||Hard chromed|
|Stroke Length||2100 mm (83")|
|S-tube Size||8" x 7"|
|Main Oil Pump||Rexroth hydromatic A11VLO260|
|Hydraulic System Pressure||350 bar (5076 psi)|
|Lube System (Hopper)||Automatic|
|Hopper Capacity||Easy Clean 600L (158G)|
|Number of Strokes/Min||31|
|Output Control Range||10(13)~164m3/h (215yd3/h)|
|Pipe Size(ID)||125 mm (5")|
|Boom Control Valve||Proportional (by HAWE)|
|Radio Remote||Dual Wireless Transmitter System|
|Water Pump||Hydraulic Power 20 bar (290 psi)|
|Water Tank||500L (132G)|
|Popular Upgrades||LED Boom Light Kit
LED Outrigger Lights
Heated Water Tank
Heated Hydraulic Tank
Twin Wall Pipe
18 or 20 cell Pump Kit
Big Mouth S-Tube
