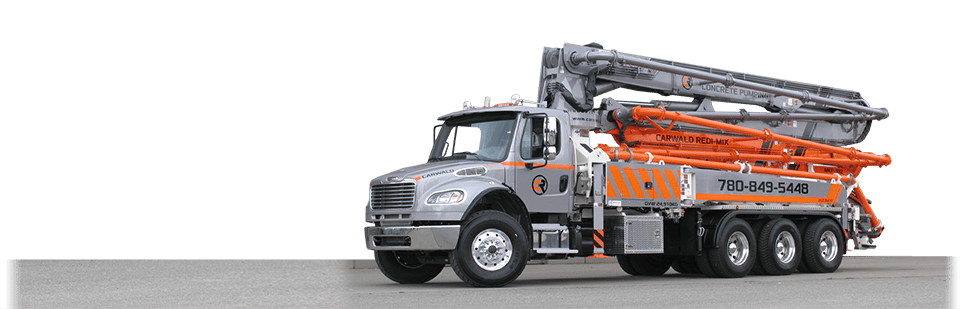

38 Meter Z-Fold - 75% Road Ban

With the introduction of a robust yet lightweight pedestal and streamlined side panels and outriggers, this modern design has allowed for less overall weight - making this machine legal in more places. What did not change on this redesigned concrete pump was the simplicity, reliability and performance that has become synonymous with the Alliance Concrete Pumps name.

Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.

Split Panel Electrical System
The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.

Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.

View More Standard Features

S-Valve Manifold
Directs oil flow to either shift cylinder. Accumulator pressure is also utilized to control the main pump controllers. All electrical functions have manual over-rides.

Main Pump Cell Manifold
Directs oil to the pumping cylinders. All electrical functions have manual over-rides. The main pumping system is an open loop circuit, which reduces heat in the hydraulic system.

Boom Control Valve
The Hawe Controller Valve operates the boom functions and supplies oil for the outrigger circuit. This valve is fully proportional.

Main Pump
This is the main pump which delivers oil for the pumping cylinders. Accumulator pump, boom pump and accessory pumps are all Roxroth.

Hydraulic Oil Cooler
The fan is operated by a hydraulic motor for efficiency and maximum cooling and is controlled by a temperature sensor, with a manual over-ride.

Radio Remote Controls
Our standard package is equipped with Omnex Radio Controls, including two transmitters. The transmitter can also be utilized as a hard wire controller. The data cable plugs directly into the transmitter and into the receiver making the transmitter a proportional hard wire box. With the hard wire plugged into the transmitter, the battery is not necessary.

Hawe Load Holding Valve
Industry standard on boom cylinders to hold the boom in position.

Boom, Outriggers and Turret
Structures are all made of Oxelosund-Weldox structural steel.

Split Panel
Common relays are utilized along with ATO fuses. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.

EasyClean 600L Hopper
Carbide Tungsten wear parts and 60mm agitator shafts.

Hopper Vibrator
Standard on all Boom Pumps and Truck-Mounted Line Pumps, our Hopper Vibrator helps you tackle those harsh mixes.

Hopper Auto Lube
Moving parts in the hopper assembly are lubricated by a Lincoln Auto Lube system.

Hide Standard Features

Alliance Concrete Pumps

DIMENSIONS & DIAGRAMS

JXLZ 38 meter footprint



JXLZ sideview weights and spacing

Alliance Concrete Pumps

Photo Gallery

Enter fullscreen

Boom Specifications

Vertical Reach 37.1m (121'9")
Horizontal Reach 33.1m (108'7")

Reach from Front

-Cabover

30.3m (99'5")
Unfolding Height 8.9m (29'2")
1st Section Length 8.98m (29'5")
2nd Section Length 7.85m (25'9"")
3rd Section Length 7.94m (26'1"")
4th Section Length 8.33m(27'4")
Outrigger X-Style
Front Spread 6.3m (20'8")
Rear Spread 7.0m (23')

Pump Specifications

FOR 10 CELL ONLY
Output: Rod Side 96m³/h (126yd³/h)
Output: Piston Side 63m³/h (82yd³/h)
Pressure: Rod Side 76bar (1102psi)
Pressure: Piston Side 112bar (1625psi)
Concrete Cylinder Diameter 200mm (8")
Concrete Cylinder Type Hard chromed
Stroke Length 1600mm (63")
S-tube Size 8" x 7"
Main Oil Pump

Kawasaki

180cc

Hydraulic System Pressure 350 bar (5076 psi)
Lube System (Hopper) Automatic
Switching System Hydraulic
Hopper Capacity Easy Clean 600L (158G)
Number of Strokes/Min 31
Output Control Range 5(7)~96m³/h (126yd³/h)

General Specifications

Pipe Size(ID) 125 mm (5")
Boom Control Valve Proportional (by HAWE)
Radio Remote Dual Wireless Transmitter System
Vibrator Standard
Water Pump Hydraulic Power 20 bar (290 psi)
Water Tank 800L (211gal)
Wear Parts Carbide
Popular Upgrades

LED Boom Light Kits
LED Outrigger Lights

Heated Water Tank

Heated Hydraulic Tank

Air-Cuff

Twin Wall Pipe





Chassis Options

Kenworth ChasisFreightliner Chassis
