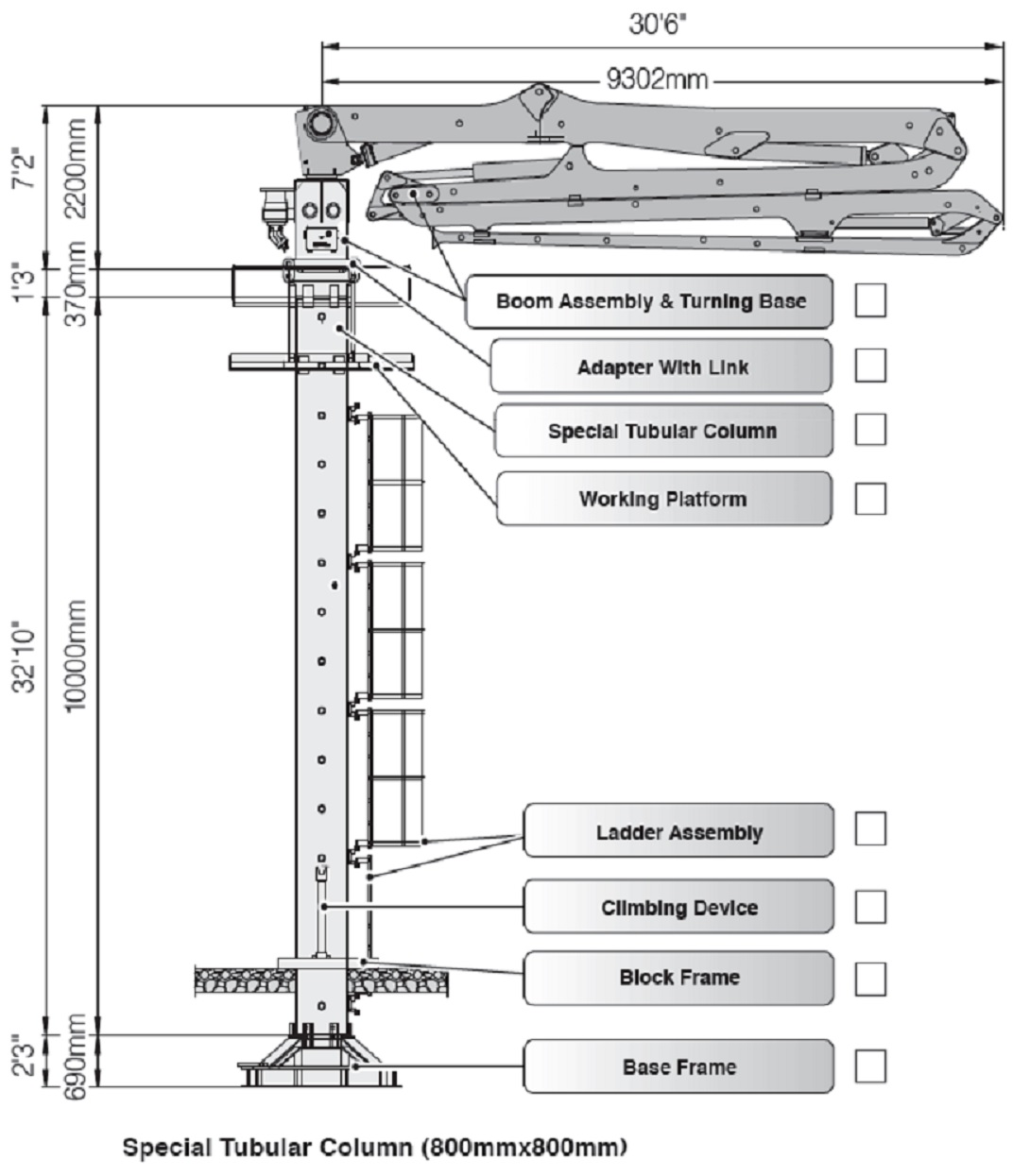

Dimensions & Diagrams

Alliance Concrete Pumps

Photo Gallery

Enter fullscreen

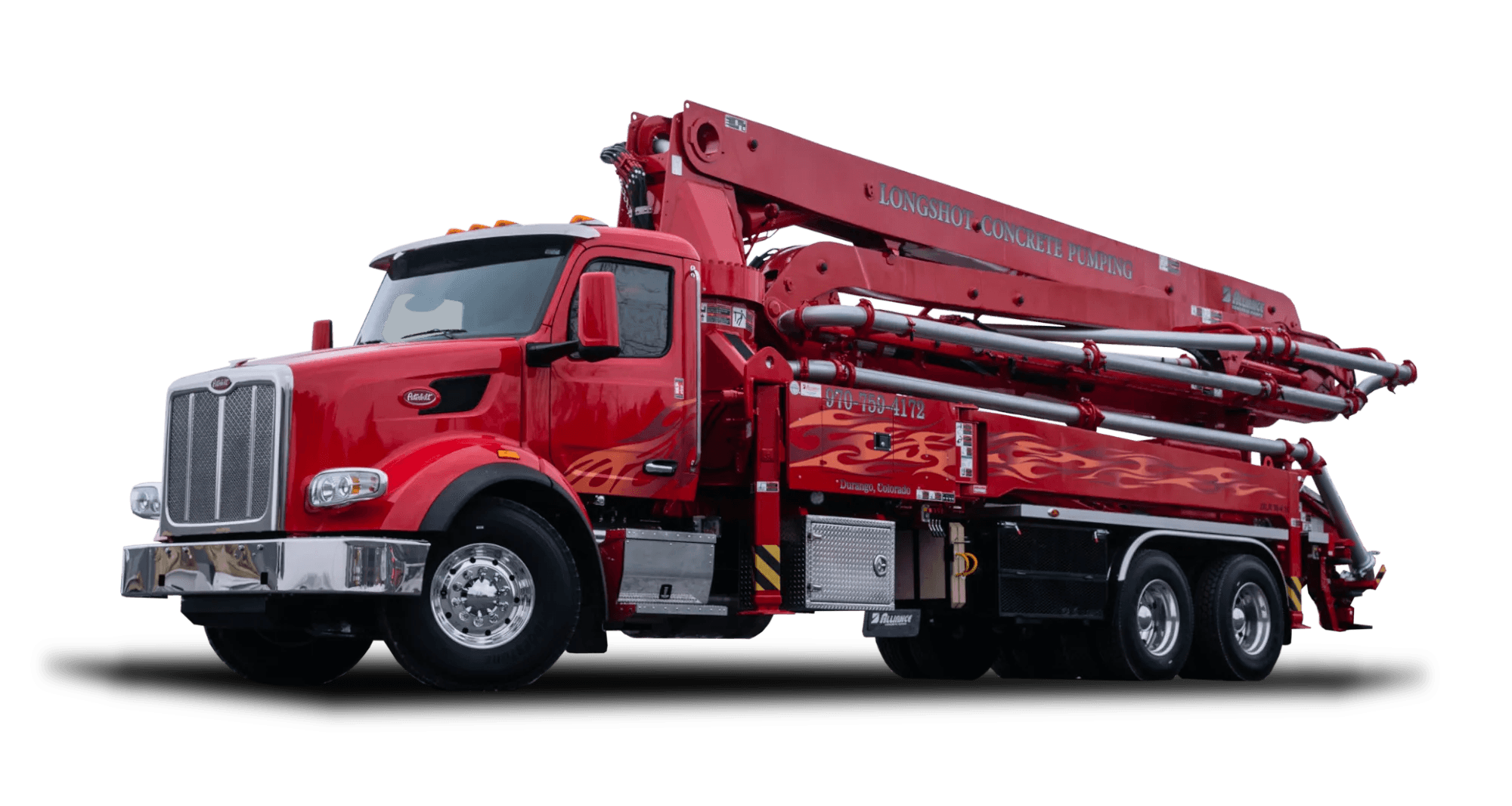

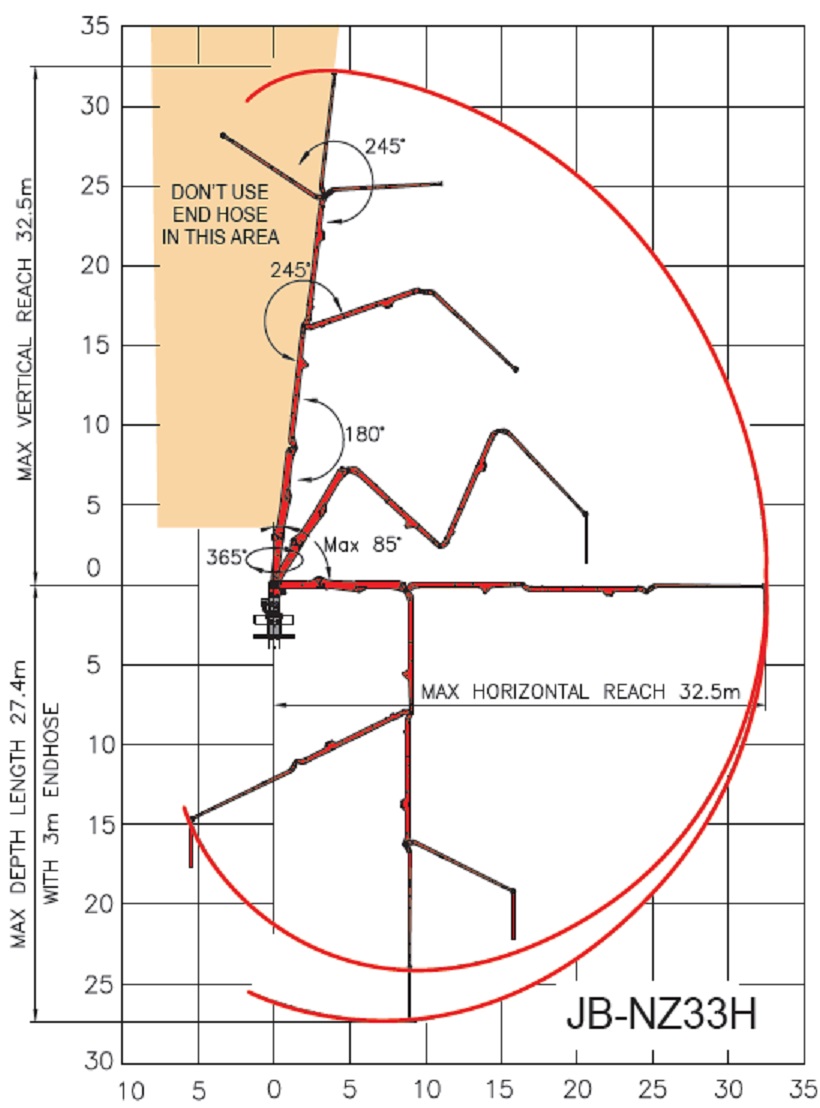

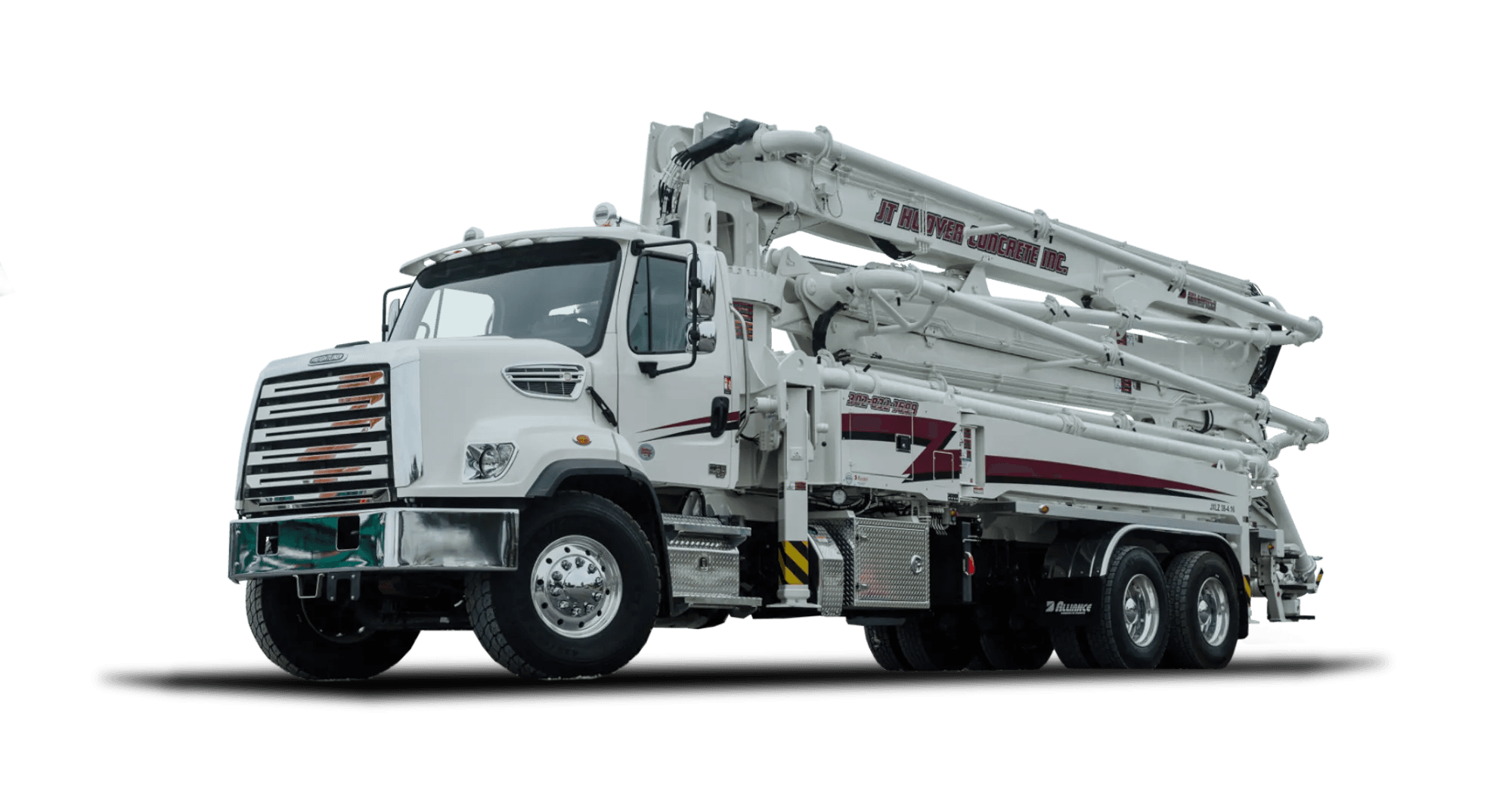

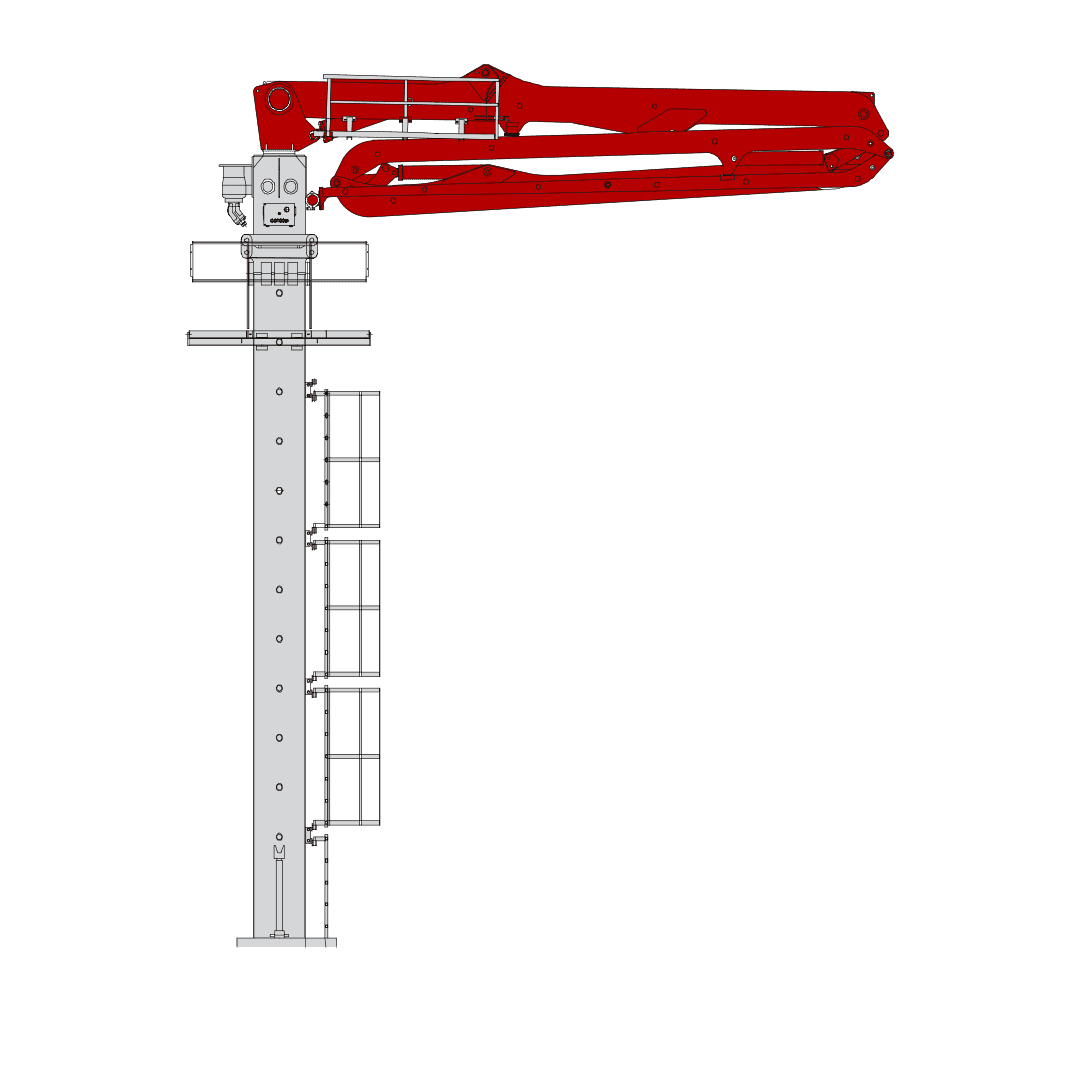

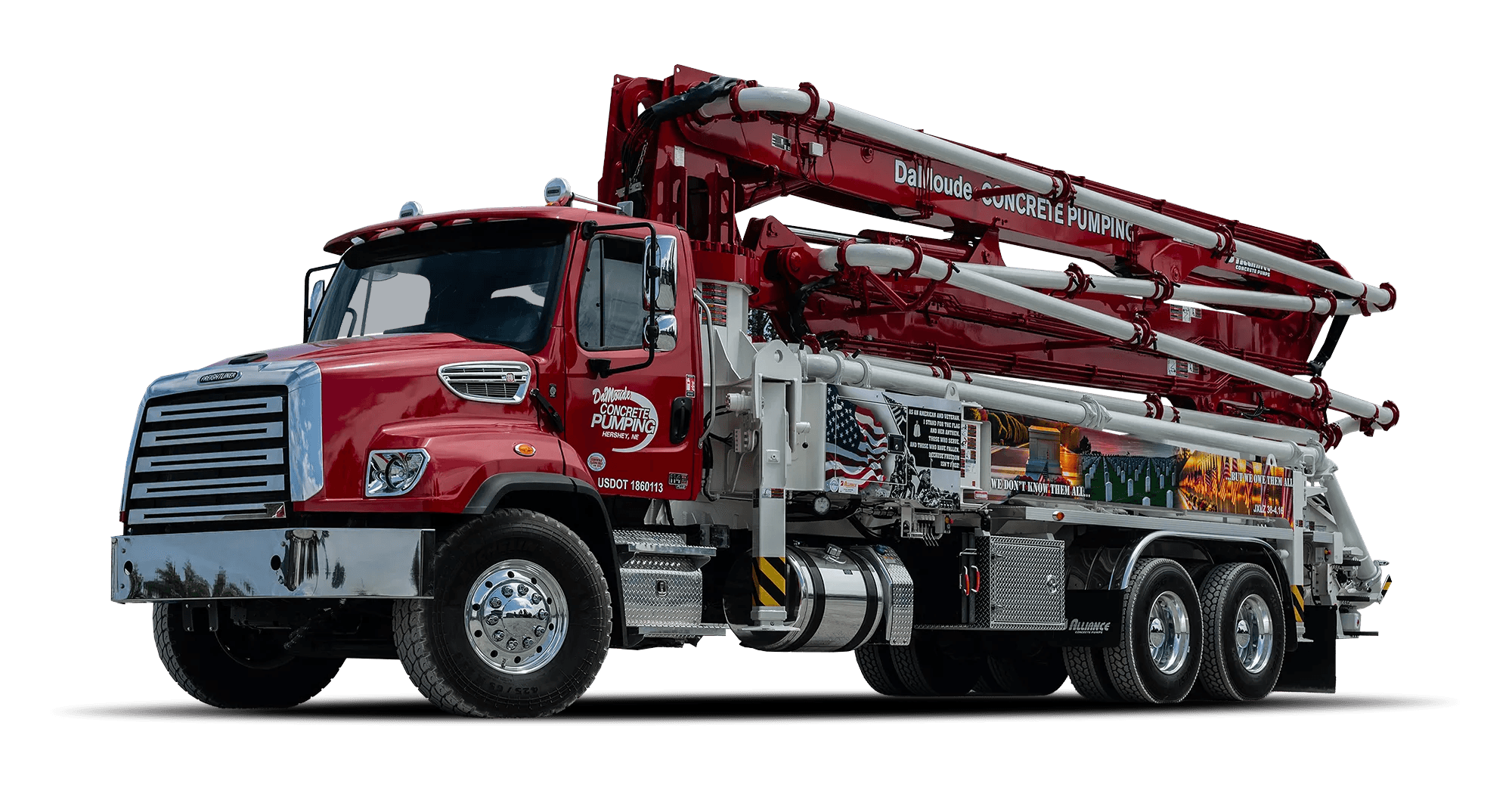

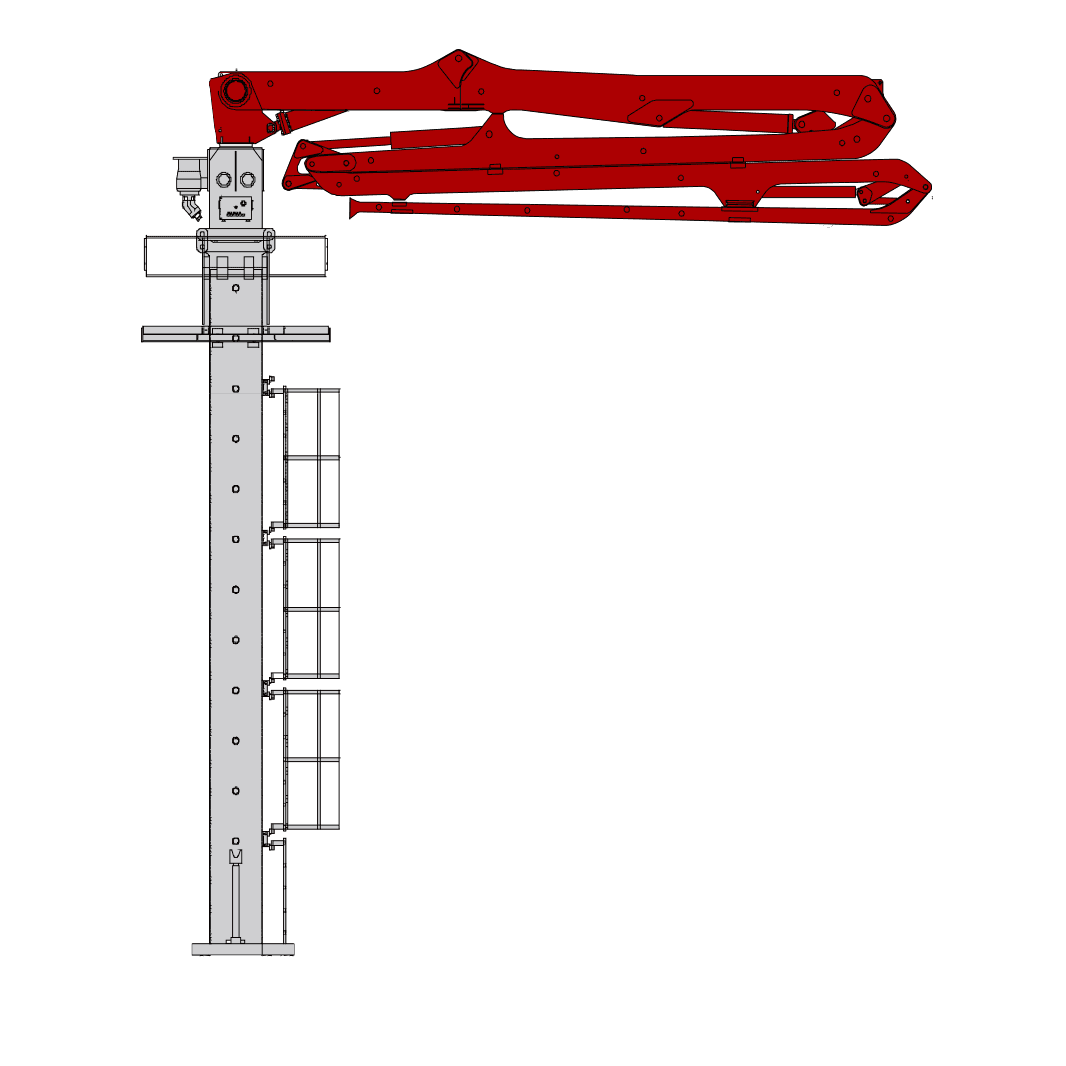

Boom Specifications

Boom Design Z-Fold
Horizontal Reach 32.5 m (106'8")
Vertical Reach 32.5 m (106'8")
Reach Depth 27.4 m (89'11")
Boom Length
      1st Section 8.7 m (28'7")
      2nd Section 7.7 m (25'3")
      3rd Section 8.2 m (26'11")
      4th Section 7.9 m (25'11")
End Hose Length 4.0 m (13'1")
Boom Articulation
      1st Section -2°~83°
      2nd Section 180°
      3rd Section 245°
      4th Section 245°
Rotation 365°
Delivery Line DN 125mm(5")
Electric System AC460V/60HZ
Control Systems Wireless
Electric Motor 15kW
